Pharm'ACM

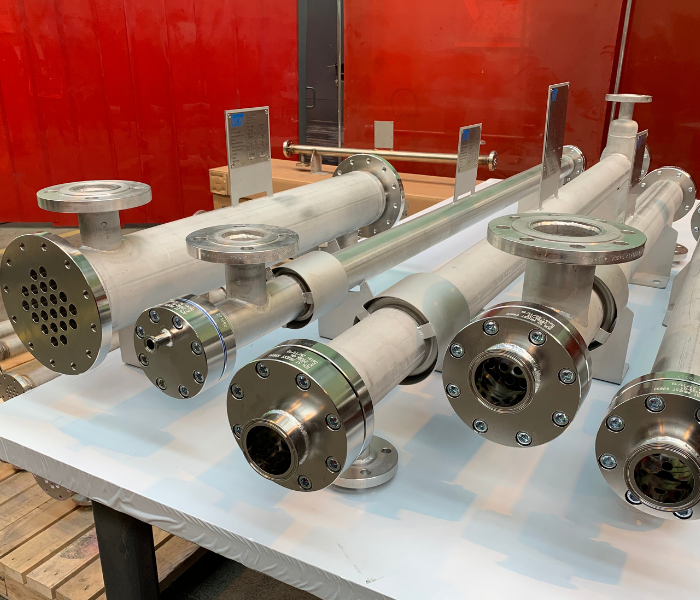

A range of heat exchangers specifically designed for pharmaceutical process water production and distribution systems,combining thermal performance with sanitary requirements.

 Need more information on the Pharm'ACM range?

Echangeurs de chaleur des systèmes de production et de distribution des eaux de process pharmaceutique.

Spécialement conçue pour les boucles d’eaux purifiées pharmaceutiques (EPPI, EHP, EP…).

Notre gamme d’échangeurs « Pharm’ACM » a été spécialement conçue pour répondre aux exigences de l’industrie pharmaceutique. Cette gamme d’échangeurs correspond aux échangeurs de type DTS (Double TubeSheet) décrits dans l’ASME BPE. La conception particulière des échangeurs « Pharm’ACM » permet d’éviter toute contamination et tout développement bactériologique des systèmes de production et de distribution des eaux de process.

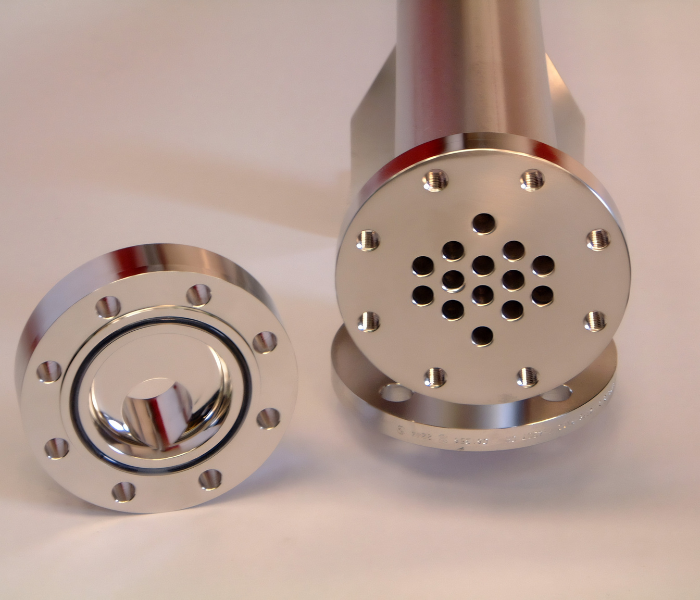

  • The design prevents the mixing of process and utility fluids through the use of double tube sheets

  • The design has no retention zones

  • Surface finishes are controlled on the process side; roughness ranges from 0.8 µm to 0.4 µm

  • The process fluid flow is always turbulent

  • The bundle tubes are seamless

  • The bundle tubes are welded to the outer tube sheets

  • The heat exchangers are designed for both normal operating conditions and thermal decontamination applications.

  • The operating pressure on the process side is higher than on the utility side

  • The seals in contact with the process are removable and easily cleanable; they are FDA and USP Class VI certified

  • Straight-tube heat exchangers are preferred over U-tube heat exchangers

  • Each unit is manufactured in compliance with the European Pressure Equipment Directive 2014/68/EU

To meet the thermal-hydraulic requirements of the pharmaceutical industry, Pharm'ACM heat exchangers are studied on a case-by-case basis by our thermal engineers.
